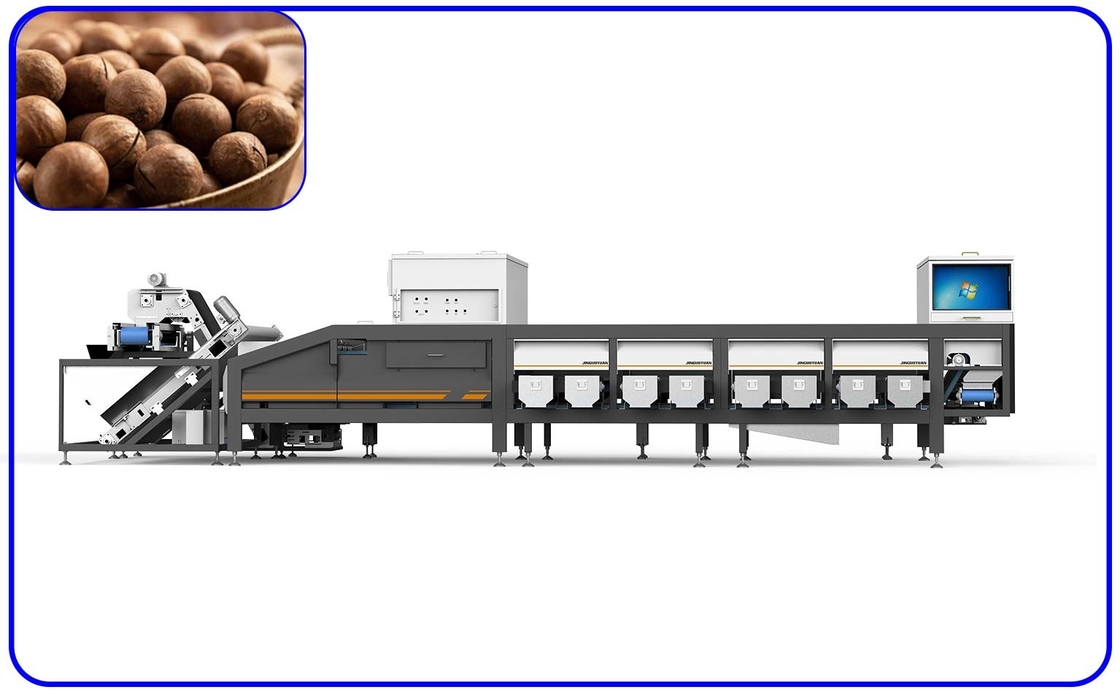

Nuts Intelligent Robot Grading Sorting Machine 8 Channel Computer Control
  • Nuts Intelligent Robot Grading Sorting Machine 8 Channel Computer Control
  • Nuts Intelligent Robot Grading Sorting Machine 8 Channel Computer Control

Nuts Intelligent Robot Grading Sorting Machine 8 Channel Computer Control

Place of Origin Hefei,Anhui,China
Brand Name Jinguoyuan sorting robot
Certification CE Certificate
Model Number 8 channels macadamia nuts sorting machine
Product Details
Operation Method:
Computer Control
Number Of Sortable Lanes:
8
Type:
Robot
Voltage(V/Hz):
380/50
Capacity (T/H):
0.8~1.2
Weight (KG):
2990
High Light:

Intelligent Grading Sorting Machine

,

8 Channel Grading Sorting Machine

,

Nuts Robot Sorting Machine

Product Description

Intelligent AI Sorting Equipment For Macadamia Nuts 8 Channels Macadamia Nuts Sorting Machine

Product introduction

According to the difference of the optical characteristics of the material, the photoelectric detection technology is used to automatically sort out the damaged particles and large and small particles in the granular material.

sorting category:macadamia nuts

sorting standard

macadamia nuts material Good ones Broken ones Bad ones

Machine parameters

Model channel

capacity

(T/H)

voltage

(V/Hz)

power

(KW)

pressure

(M/Pa)

consumption(M3/min) size(长mm*宽mm*高mm)

weight

(KG)

XWYG04-0808A 8 0.8-1.2 380/50 7 >0.6 1.6 8230*2321*1672 2990



1. Based on AI technology combined with deep learning algorithm,Instad of the traditional visual sorting scheme, we use AI technology which greatly improves the sorting effect. At the same time, the machine can do multiple sorting and multiple results one time.

2.The materials would be rolling when sorting, no space would be ignored,then the sorting accuracy increased highly.

3.380V power supply, unique air circuit quick-connect connection, low power consumption of the whole machine.



After-sale service:

Free software upgrade service for our customers all life.

Free maintenance.

Packaging and Shipping:

Delivery time: 15-30 working days after receiving the deposit.

Quality: Quality as factory standard.

Packing: Factory standard export plywood box packing, suitable for container shipment.



FAQ

Q: What is your material conveying method?
A: Our equipment adopts 360-degree rotating conveying and scanning, and there is nowhere to hide the tiny flaws.



Q: Do you have overseas after-sales service?
A: We currently have a number of after-sales service personnel to provide customers with timely and thoughtful services
Online engineering services are always available, along with software inspection and maintenance. In all countries, after-sales service is also available locally.
