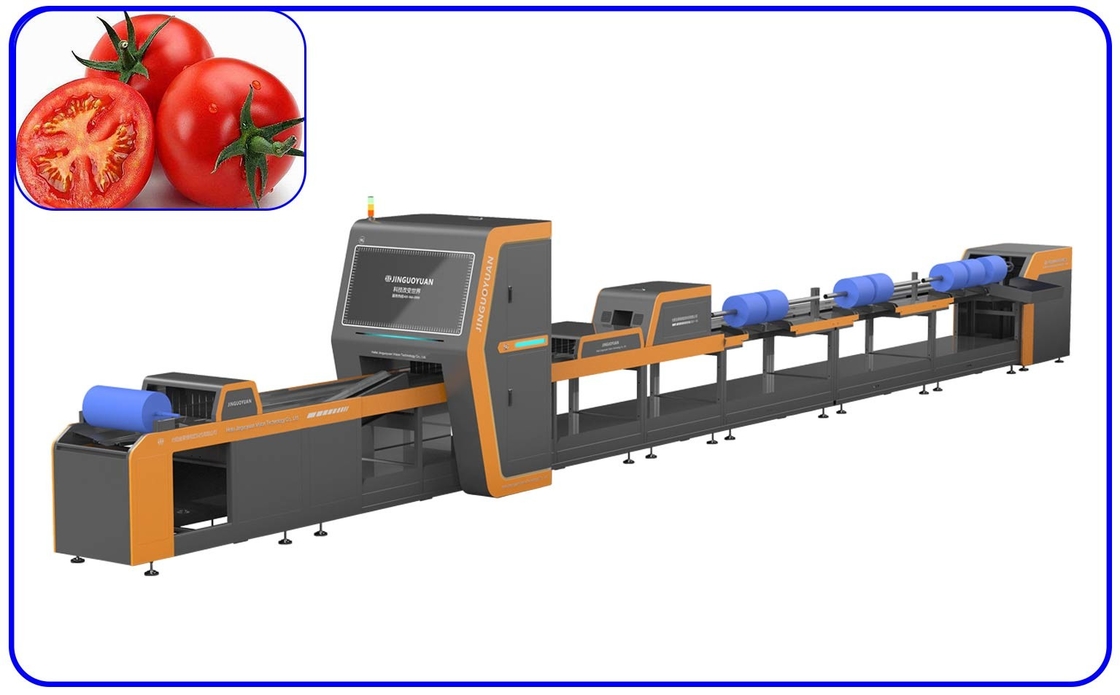

High Yield Customizable Tomato Sorting Equipment 6 Channel Intelligent Tomato Sorting Machine
Product introduction:
According to the difference in the optical properties of materials, the photoelectric detection technology is used to automatically sort out the damage and size of the fruit and vegetable materials, and it can also detect the sugar content in the sorting fruits and vegetables.
Sorting item: Tomato
Sorting standard
| Raw Tomato |
Big Tomato |
Medium Tomato |
Small Tomato |
Rotten Tomato |
|
Parameters
| model |
channel |
capacity
(T/H)
|
voltage
(V/Hz)
|
power
(KW)
|
size(length*Width*height) |
| ZG06 |
6 |
12-15 |
380/50 |
18.65 |
27690*2790*2280 |
The date is for example as the apple, actual effect would be according to your raw materi
| Model |
function |
voltage
(V/Hz)
|
power
(KW)
|
size(length*Width*height) |
| Water sterilizing system |
Soft cleaning and sterilizing system |
380/50 |
3.05 |
5000*1280*1135 |
| Wind drying system |
surface drying, no destroy to the fruit characters |
380/50 |
3.75 |
5000*1000*1750 |
| Dry switch feeding |
Dry feeding |
380/50 |
2.5 |
4600*1000*980 |
| Export packing line |
Human packing |
380/50 |
7.53 |
6000*900*1400 |
| Empty box transportation |
Fruit box supply |
380/50 |
0.6 |
10030*530*300 |
Features
1. One of the first companies in the industry to adopt the fifth-generation FPGA core processor.
2. Based on AI technology combined with deep learning algorithm,Instad of the traditional visual sorting scheme, we use AI technology which greatly improves the sorting effect. At the same time, the machine can do multiple sorting and multiple results one time.
3. With high-speed and high-resolution industrial digital cameras, the image is clear and stable.
4.The materials would be rolling when sorting, no space would be ignored,then the sorting accuracy increased highly.
5.380V power supply, unique air circuit quick-connect connection, low power consumption of the whole machine
6. Multi visual sorting system: using computer vision technology to collect information such as color, fruit shape, and defects of materials.
7. Internal quality inspection system: Infrared non-destructive inspection technology is used to collect internal quality, including sugar content, mildew and so on.
8. Electronic weighing system: electronic sensing technology to collect quality information of materials
9. Production auxiliary system: feeding system including water feeding, dry feeding and dry feeding system, which can better solve the problem of material bumping.
10. Packaging platform: It can effectively improve the packaging speed of materials and production efficiency.
FAQ
Q: Is your sorting model easy to operate?
A: Our sorting model has a simple operating system and is easy to operate. It can be directly operated after a simple guide to the personnel.
Q: What are the categories of your sorting system?
A: Our sorting machine operating system is divided into four categories, including: multi-dimensional visual sorting system, electronic weighing system, internal inspection system, production auxiliary system.
