220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications
  • 220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications
  • 220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications
  • 220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications
  • 220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications
  • 220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications
  • 220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications
  • 220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications

220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications

Place of Origin Hefei China
Brand Name Zhongan
Certification CE Certificate
Model Number LBGG04-0808A
Product Details
Features:
Multi Crackers Work Together Available
Cracking Module:
380V 24000 Nuts Each Hour
Advantages:
Dry Cracking Avoid Mildew
Shelling Module:
220V 100000 Nuts Each Hour
Output:
1-2 Tons
Separation Module:
IR For Kernel Shell Separation
Perfect Kernel Rate:
99.8%
Bring Out Ratio:
>500:1
Highlight:

CE Certification pecan nut sheller

,

Pecan Shelling Machine Capable

,

24000 nuts/h Pecan Shelling Machine

Product Description

220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications



Product Introduction

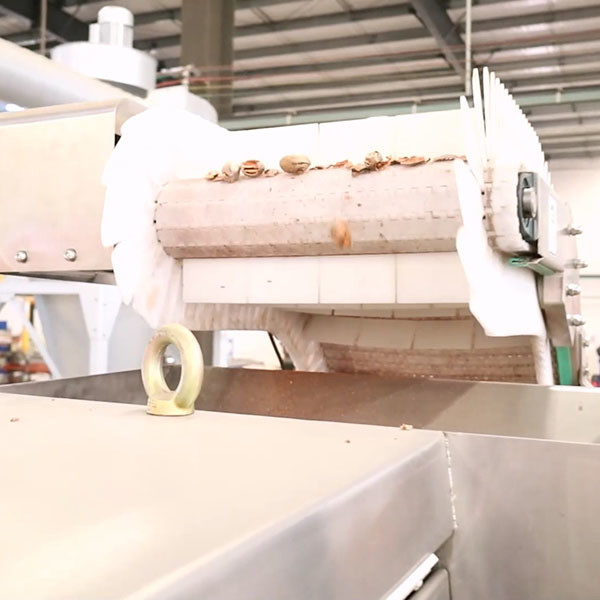

The first pecans cracking & shelling production line in China was created by Hefei Zhongan, shells of raw materials pecans are harder than walnuts, therefore, there is a pecan cracker before entering into shelling machine. Our single cracker is able to work for 24,000 pecans each hour, it means when you use 3 crackers for feeding, the output will be trippled.



Our Pecans production line is fully automatic, suitable for massive production and farewell to labor as it's huge labor saving and much value added to pecans manufacturers.


220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications 0





Material Sorting Effects



220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications 1





Product Specification



No.

Output

(pcs/h)

Voltage

(V/Hz)

Power

(kW)

Air Pressure

(MPa)

Air Consumption

(m3/min)

Dimension

(LxWxH mm )

Weight

(kg)

Cracker 24,000 380/50 0.5 1>AP>0.6 1.2 1130*750*1310mm 230
Sheller 100,000 220/50 1.5 N/A N/A 2610*740*1100mm 800



Remarks: The effect of the pecans production line is related to the pecans variety, kernel moisture, etc. Above data for reference only Above data for reference only.



Product Features



  • Intelligent one-key operation mode, responsive-simplified easy to use
  • Auto craking & shelling in the module after sorting and grading
  • Dry cracking advanced, avoid mildew and deterioration caused by soaking in the water
  • Kernels and shells are didived into different exits
  • Large output of 100,000 pcs of pecans each hour

220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications 2


Certificates



Quality Management System Certificate, CE Certificate



220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications 3220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications 4220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications 5




Packaging & Shipment



Due to pecan shelling machine is very large, usually it will be module packed with large durable pallet and covered stretch film to ensure good condition during long-term ocean shipment. For other small parts, they're packed into multi-layer corrugated boxes.
All packages is aimed to protect the machine from any damaged during the complicated shipment.



220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications 6



Warranty



We provide 1-year warranty for our pecan cracking & shelling production line. In addition, spare and wear parts are available to sent along with the shipment so it's easier to get the equipment at the best working status time and time.



Business Procedures



220V Pecan Shelling Machine Capable 100000 Nuts With CE Certifications 7





After Sale Services

  • Professional Installation team & Verification team
  • Perfect operation training before putting into production
  • Free spare & wear parts along with shipment
  • User manuals with operation & maintenance details
  • Quick-response after-sales supports
  • Life-span free software updates​



FAQ



Q: How can I know your equipment suitable for our dates or not? Can you send a process video?
A: We accept dates samples and take videos during real processing, so you will have an obvious look at the effect to our dates sorting equipment. In addition, your visit to our manufacturing base is greatly recommended.



Q: What about the lead time?
A: Refer to our business procedures, it will take 15-30 days after contract signed and deposit received, namely after our proposal is agreed to cater your actual demands.
